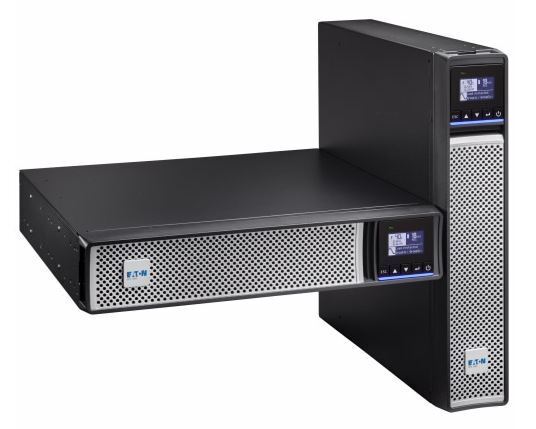

Eaton 5PX UPS Rack Tower
Eaton 5PX UPS Rack Tower

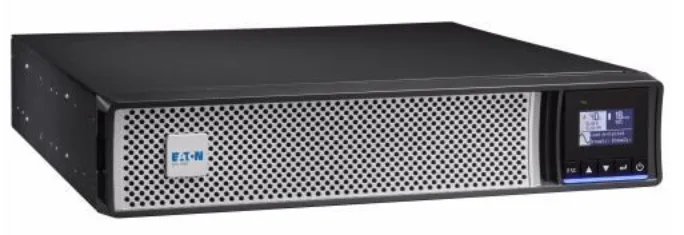

Eaton 5PX UPS Side
Eaton 5PX UPS Side
Eaton 5PX UPS LCD Display
Eaton 5PX UPS LCD Display
Eaton 5PX UPS Comms
Eaton 5PX UPS Comms
Eaton 5PX UPS Up to 4 EBMs Rack
Eaton 5PX UPS Up to 4 EBMs Rack

Product Description

The new Eaton 5PX Gen 2 dual UPS (Rack or Tower mountable) provides line-interactive backup power and scalable run times for servers, storage systems, VoIP gear and network equipment. With a next-generation intuitive LCD display, energy consumption metering down to the outlet group level and up to 99% efficiency, the 5PX is the perfect UPS to protect modern IT equipment. Eaton's ABM (Advance Battery Management) significantly extends the battery life compared to traditional charging.

Increased runtimes are possible by adding further EBMs (External Battery Modules), our friendly team will help calculate your requirements.

  • Eaton 5PX Gen 2 provides Unity power factor (W=VA) capability.
  • With 11% more power than other UPS it can protect more.
  • Energy Star 2.0 certified, 5PX Gen2 offers best-in-class efficiency performance to reduce energy consumption and
    cooling costs.
  • When operating in battery mode the 5PX provides a high-quality output signal for any sensitive equipment connected, such as
    active PFC (power factor corrected) servers.
  • Each 5PX Gen2 battery configuration provides the best size/runtime ratio.

Technical Specification

Warranty 3 Years
UPS Technology Line Interactive
Ports and connections
Input IEC C14
Output 8 x IEC C13
Communications 1 x USB port + 1 x RS232 serial port + 1 X Communication Slot for Network-M2, ModBus-MS or Relay-MS cards
Typical backup time at 50% load (mins) 17
Typical backup time at 70% load (mins) 8
Output power (VA) 1000
Output power (Watts) 1000
Input Voltage (Volts) 220/230/240
Output Voltage (Volts) 220/230/240
Power Supply Input Frequency (Hz) 50/60
Dimensions and weight
Width (mm) 438
Depth (mm) 448
Height (mm) 86
Weight (Kg) 20
