APC Service Bypass PDU 1-3kVA
SBP1500RMI
With 32 years of experience, our knowledgeable sales team is here to provide expert advice on UPS systems tailored to your needs. We specialise in professional installation and comprehensive maintenance services for systems 5kVA and above.

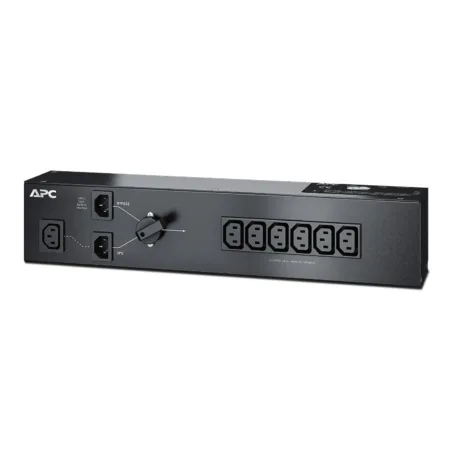

SBP1500RMI

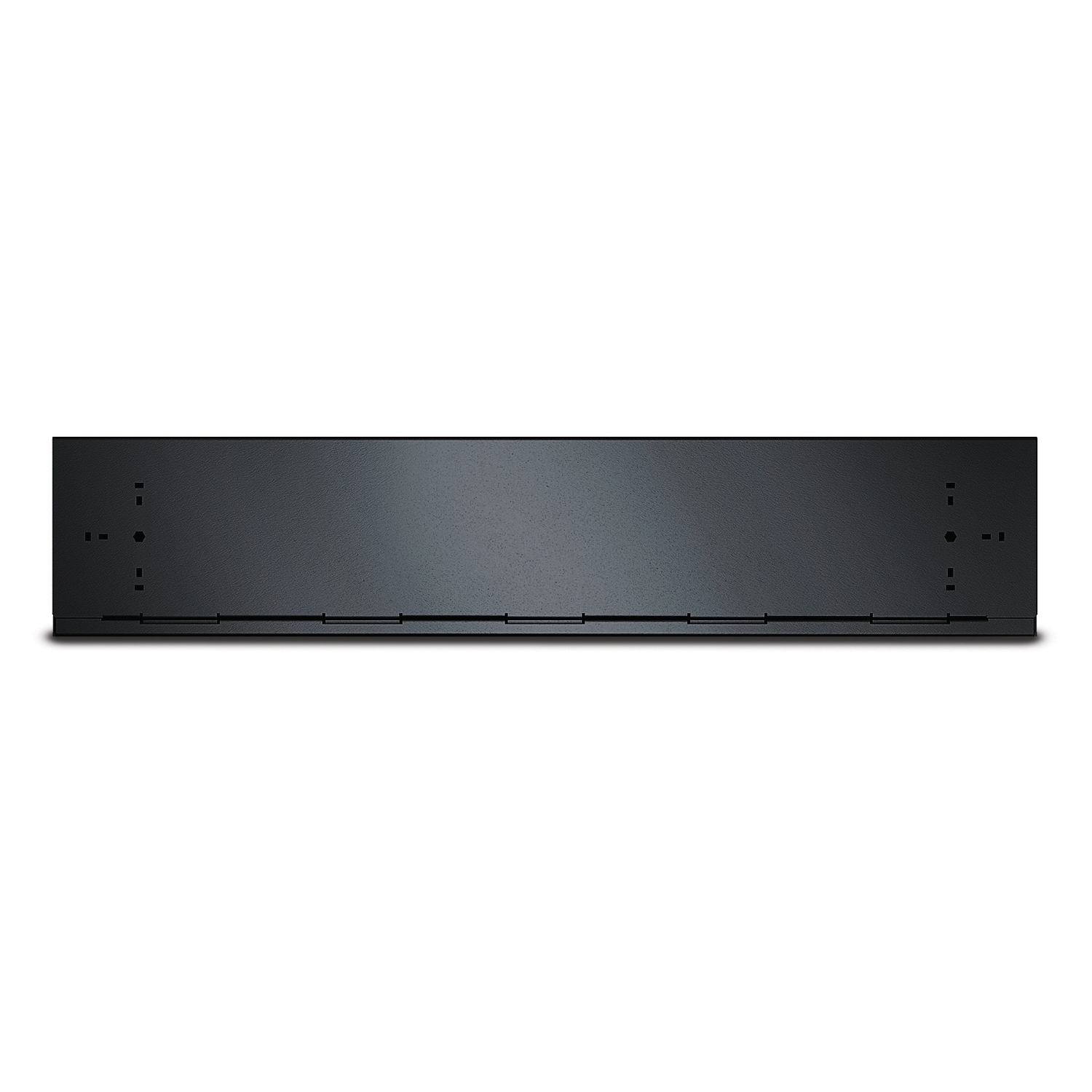

SBP1500RMI Rear
Product Description
Rack mounted bypass switch for 1-3kVA UPS systems.
The APC Service Bypass PDU provides a wrap around system to allow easy maintenance of a UPS by isolating it from the critical load. The panels can be rack (2U) or wall mounted and are available with an integrated Power Distribution Unit (PDU).
Options
- The SBP1500RMI should be used for all UPS systems up to 1.5kVA with an IEC C14 input.
- The SBP3000RMI should be used for all 2.2 and 3kVA UPS systems with an IEC C20 input.
Technical Specifications
| Ports and connections | |
| Input | IEC C14 |
| Output | 6 x IEC C13 |
| Input Voltage (Volts) | 220/230/240 |
| Warranty | 2 Years |
| Dimensions and weight | |
| Width (mm) | 432 |
| Depth (mm) | 76 |
| Height (mm) | 89 |
| Weight (Kg) | 2 |
