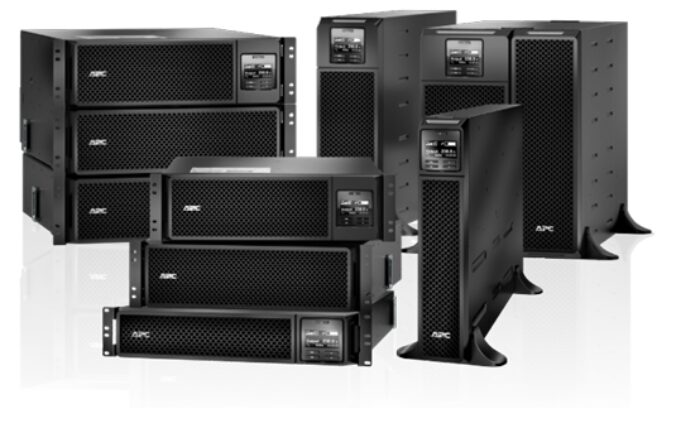

APC Smart-UPS Online SRT series with extended runtime
SRT1500RMXLI-NC
With 32 years of experience, our knowledgeable sales team is here to provide expert advice on UPS systems tailored to your needs. We specialise in professional installation and comprehensive maintenance services for systems 5kVA and above. Contact us today for competitive pricing.
Models
- APC Smart-UPS Online 1500VA, Rackmount 2U, with network card and rail kit. Extended runtime.
- APC Smart-UPS Online 2200VA, Rackmount 2U, with network card and rail kit. Extended runtime.
- APC Smart-UPS Online 3000VA, Rackmount 2U, with network card and rail kit. Extended runtime.
- APC Smart-UPS On-Line, 5kVA, Rackmount 3U, with network card and rail kit. Extended runtime and 6-year warranty
- APC Smart-UPS On-Line, 6kVA, Rackmount 4U, with network card and rail kit. Extended runtime and 6-year warranty.
SURT1500 RMXLI
SURT1500 RMXLI Rear
Product Description
High density, double-conversion on-line power protection with extended, scaleable runtimes.
Single-phase, double-conversion online UPS with advanced management features. Perfect for servers, voice/data networks, medical labs, and light industrial applications, the Smart-UPS Online UPS family is capable of supporting loads from 1kVA – 10kVA in a rack/tower convertible chassis. The 6kVA, 8kVA, and 10kVA models feature unity output power factor enabling them to support power-hungry blade servers or heavily loaded equipment racks. When business-critical systems require runtime in hours, not minutes, Smart-UPS On-Line can be configured with multiple battery packs to meet aggressive runtime demands.
Technical Specifications
| Warranty | 3 Years |
| UPS Technology | Online |
| Ports and connections | |
| Input | IEC C14 |
| Output | 6 x IEC C13 |
| Communications | RJ-45 Serial, SmartSlot, USB |
| Battery | |
| Typical backup time at 50% load (mins) | 14 |
| Typical backup time at 70% load (mins) | 9 |
| Power | |
| Output power (VA) | 1500 |
| Output power (Watts) | 1500 |
| Input Voltage (Volts) | 220/230/240 |
| Output Voltage (Volts) | 220/230/240 |
| Power Supply Input Frequency (Hz) | 50/60 |
| Dimensions and weight | |
| Width (mm) | 432 |
| Depth (mm) | 505 |
| Height (mm) | 85 |
| Weight (Kg) | 21 |
