APC Symmetra PX UPS, 32-96kW (scalable) with Modular Power Distribution


High performance, modular, scalable three-phase power protection with integrated modular distribution.

This UPS system requires professional hard‑wired installation.

Call our sales team for pricing on 0333 222 4000

3 Options

Further Information

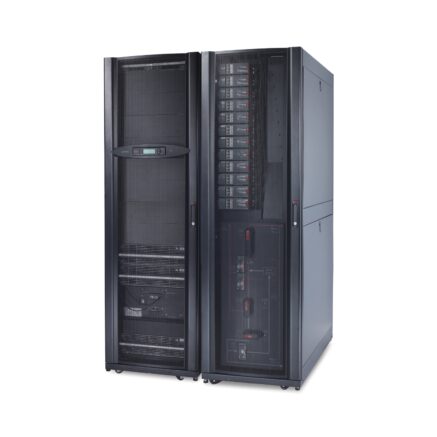

SY32 K96 H PD
SY32 K96 H PD
SY32 K96 H PD Rear
SY32 K96 H PD Rear

Product Description

A high-efficiency 3-phase UPS with integrated modular distribution that can be right-sized to your data center power requirements. With scalable power, distribution and run-time, this UPS grows with your data center (up to 96kW/96kVA). Suitable for small to medium data centers or individual zones of large data centres.

The APC Symmetra PX range of UPS are redundant, high-efficiency power protection systems, designed to cost effectively provide high levels of availability. Seamlessly integrating into today’s state-of-the-art data center designs, the Symmetra PX UPS are true modular systems. The Symmetra PX UPS are built from swappable modules — power, battery, intelligence, and bypass — all engineered into a design that is easily and efficiently serviceable. This architecture can scale power and runtime as demand grows or as higher levels of availability are required.

The Symmetra PX family delivers high availability, extreme agility, and low total cost of ownership in an aesthetic form factor. With industry-leading power density, the Symmetra PX has the ability to fit seamlessly onto the data centre floor or into the back room.

Technical Specification

Warranty 1 year on-site repair or replace with factory authorised Start-Up service
UPS Technology Double conversion online
Communications Network management card with CAN
Typical backup time at 50% load (mins) 16
Typical backup time at 70% load (mins) 10
Output power (VA) 32000
Output power (Watts) 32000
Input Voltage (Volts) 400 V 3 phases
Output Voltage (Volts) 400 V 3 phases
Dimensions and weight
Width (mm) 1200
Depth (mm) 1070
Height (mm) 1991
Weight (Kg) 1095
