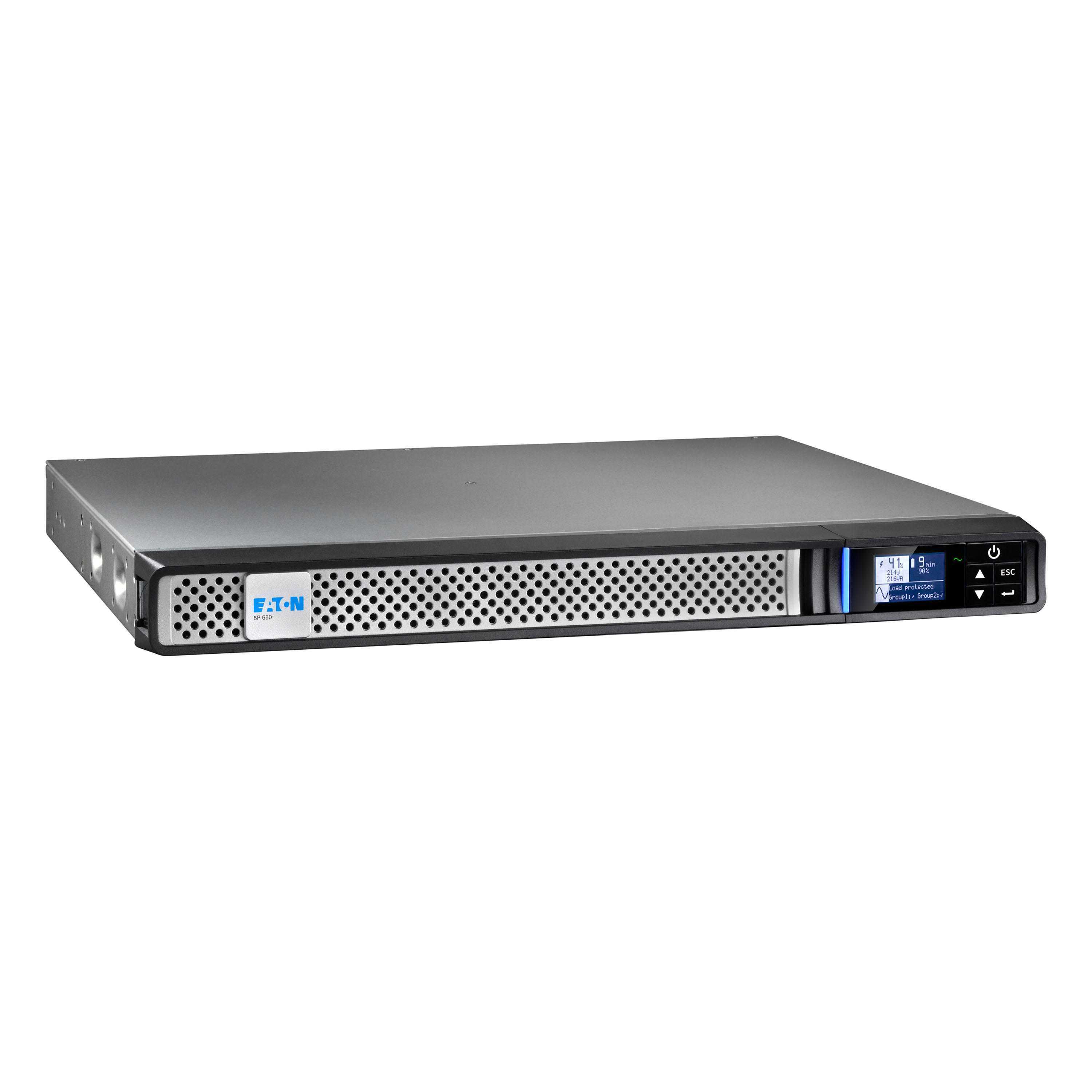

Eaton 5P Rack Mount UPS (Gen2)
5P650IRG2BS
With 32 years of experience, our knowledgeable sales team is here to provide expert advice on UPS systems tailored to your needs. We specialise in professional installation and comprehensive maintenance services for systems 5kVA and above.
Models

Product Description
The new 5P Gen2 1U rack mount UPS from Eaton is a compact and efficient solution for IT & edge environments delivering 22% more power than its predecessor.
The 5P Gen2’s intelligent design prioritises both consistent performance and energy savings. Advanced load segment control allows users to prioritise critical equipment, optimising battery runtime for essential devices. This new range also enables fleet management, remote UPS setting and remote firmware upgrade.
The UPS incorporates Eaton’s innovative ABM+ Advanced Battery Management technology. ABM+ extends battery lifespan by up to 50%, while machine learning allows for accurate battery life prediction and timely replacement notifications.
Additionally, the UPS features hot-swappable batteries and a user-friendly battery replacement wizard accessible through the built-in graphical LCD display.
Technical Specifications
Warranty | 3 Years |
UPS Technology | Line Interactive |
Ports and connections | |
Input | IEC C14 |
Output | 4 x IEC C13 |
Communications | USB, RS232 & 1 x slot for optional communication card |
Battery | |
Typical backup time at 50% load (mins) | 9 |
Typical backup time at 70% load (mins) | 6 |
Power | |
Output power (VA) | 650 |
Output power (Watts) | 520 |
Input Voltage (Volts) | 220/230/240 |
Output Voltage (Volts) | 220/230/240 |
Power Supply Input Frequency (Hz) | 50/60 |
Dimensions and weight | |
Width (mm) | 438 |
Depth (mm) | 364 |
Height (mm) | 43 |
Weight (Kg) | 9 |
