Eaton 93PM UPS (3:3)


30-60kW options in a Unity power factor solution (kVA=kW), the Eaton 93PM UPS is perfect for today's data centres.

This UPS system requires professional hard‑wired installation.

Call our sales team for pricing on 0333 222 4000

4 Options

Further Information

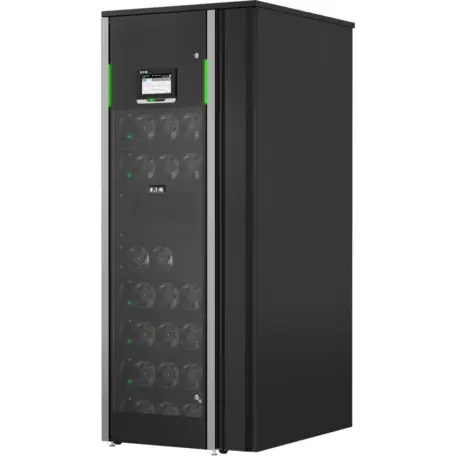

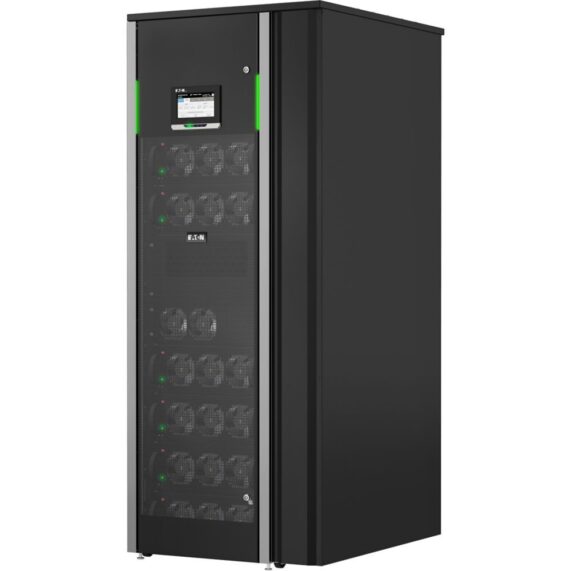

Eaton 93PM UPS Front
Eaton 93PM UPS Front
Eaton 93PM UPS Right Side
Eaton 93PM UPS Right Side

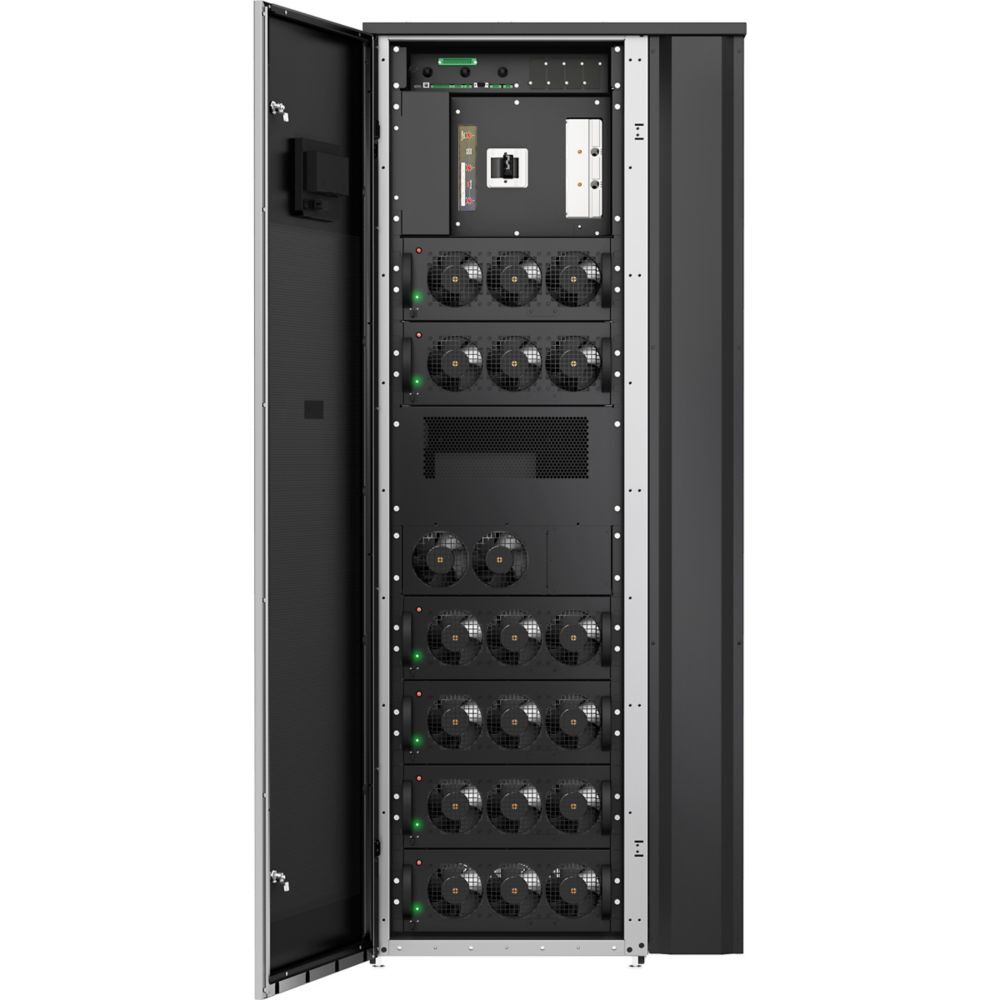

Eaton 93PM UPS Open
Eaton 93PM UPS Open
Energy Technology List
Energy Technology List

Product Description

The Eaton 93PM UPS is designed for the most advanced IT environments, and it comes with interfaces for Web and SNMP as standard. Available from 30kW - 60kW, it combines unprecedented efficiency, reliability, vertical and horizontal scalability with eye-catching design. A space-saving, flexible UPS solution that’s as easy to deploy as it is to manage.

  • 30kW - 60kW options
  • Unity power factor (kVA=kW)
  • Up to 97% efficiency in double conversion
  • > 99% efficiency with Energy Saver System
  • Scalable architecture and ‘Pay as you grow’ capability to minimise CapEx
  • Hot Sync wireless paralleling and internal redundancy for maximum availability
  • Web and SNMP interface as standard
  • Intelligent Power® software for monitoring and managing
  • Intuitive user interface and visual data logging

ETL (Energy Technology List)

The Eaton 93PM UPS is on the ETL. If you are a business that pays income or corporation tax, you be able to claim 100% first year capital allowance on this product (providing it is on the ETL at the time of purchase).

Technical Specification

EAN 6430028224180
Warranty 1 Year
UPS Technology Online (Double Conversion)
Ports and connections
Input 3 phase hardwired
Output 3 phase hardwired
Communications Mini-slot ports for optional cards, Device USB and Host USB, RS-232 service port, relay output, 5 building alarm inputs and a dedicated EPO, Web and SNMP card
Output power (VA) 30kVA
Output power (Watts) 30kW
Input Voltage (Volts) 220/380, 230/400, 240/415
Output Voltage (Volts) 220/380, 230/400, 240/415
Power Supply Input Frequency (Hz) 50/60 Hz
Dimensions and weight
Width (mm) 560
Depth (mm) 914
Height (mm) 1876
Weight (Kg) 890
