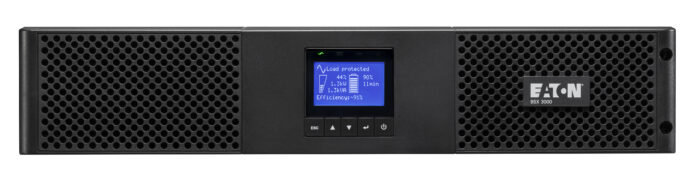

Eaton 9SX Rack UPS (1kVA - 3kVA)


Online (Double Conversion) UPS and successor to the hugely successful 9130 in 2U Rack form.

Call our sales team for pricing on 0333 222 4000

4 Options

Further Information

Eaton 9SX UPS 1kVA Rack
Eaton 9SX UPS 1kVA Rack
Eaton 9SX UPS 1kVA Rack Rear
Eaton 9SX UPS 1kVA Rack Rear

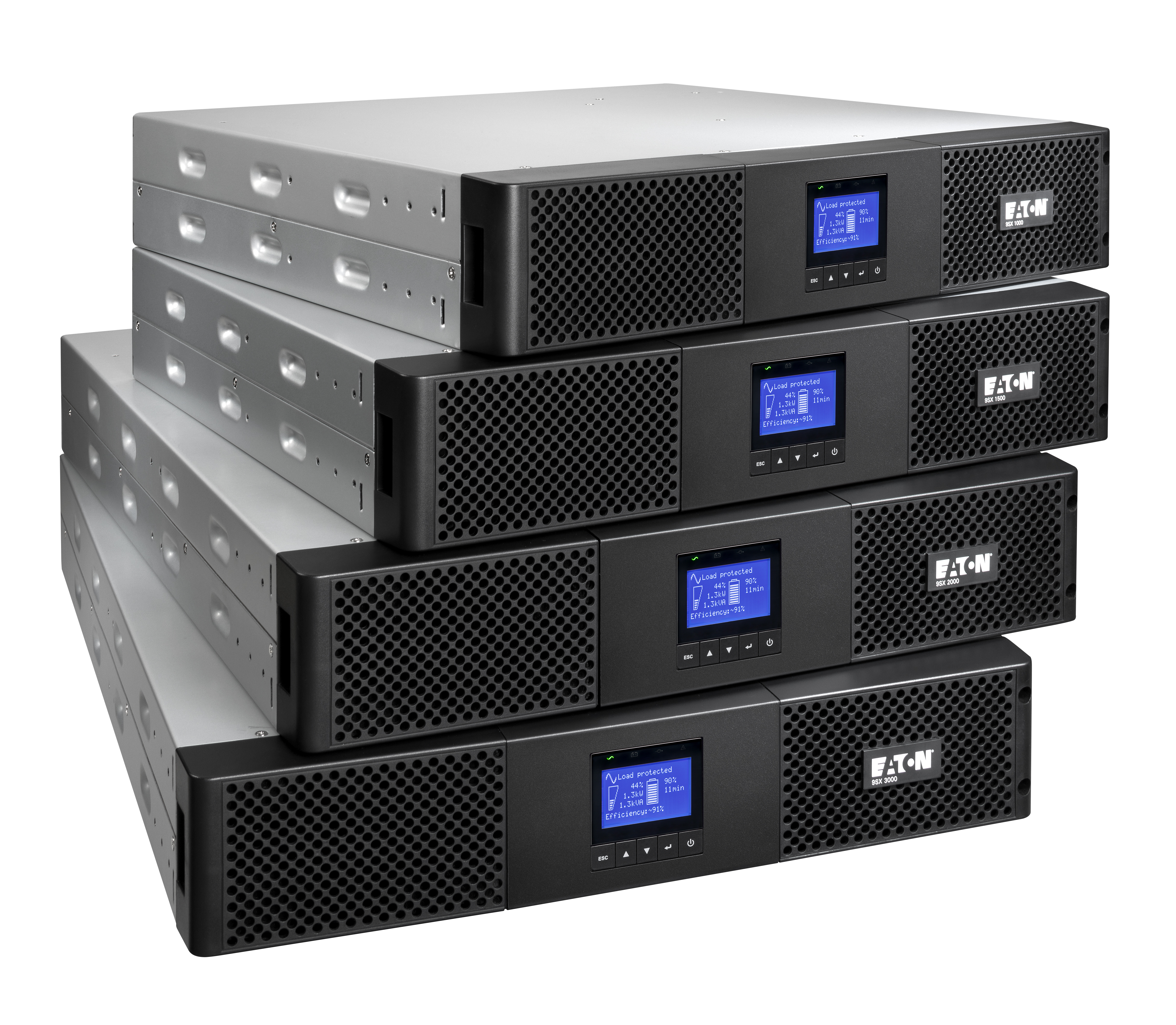

Eaton 9SX UPS 1-3kVA Rack Mounted
Eaton 9SX UPS 1-3kVA Rack Mounted

Product Description

This new offering from Eaton offers advanced protection for IT, Networking, Storage and Telecom, Industrial and Medical.

With its Double-conversion topology, the Eaton 9SX constantly monitors power conditions and regulates voltage and frequency. It's internal bypass allows service continuity in case of internal fault whilst an external maintenance bypass is also available as an option for easy replacement or servicing of the UPS without powering down critical systems.

Stronger, longer battery life: Eaton's ABM® battery management technology uses an innovative three-stage charging technique that extends battery life by up to 50%. The 9SX also provides recommended replacement date for batteries.

  • The 9SX can meter energy consumption. kWh values can be monitored using the LCD or Eaton’s Intelligent Power® Software.
  • Load segment control enables prioritised shutdowns of non-essential equipment to maximise battery runtime for critical devices.
  • The UPS offers Serial, USB connectivity, plus an extra slot for an optional communication card. Eaton’s Intelligent Power® software seamlessly integrates with leading virtualisation environments and cloud orchestrations tools.
  • Up to 3kVA of UPS power is packed into only 2U of rack space.
  • More runtime can be added with up to 4 external hot-swappable battery modules, able to run systems for hours if necessary. The additional battery modules are automatically recognised by the UPS.

Technical Specification

Warranty 2 Years
UPS Technology Online
Ports and connections
Input IEC C14
Output 6 x IEC C13
Communications Ports - 1 USB port + 1 serial RS232 port + 1 mini-terminal block for Remote Power Off + 1 mini-terminal block for Output relay. Slot - 1 slot for Network-M2, Network-MS, ModBus-MS or Relay-MS cards
Typical backup time at 50% load (mins) 12
Typical backup time at 70% load (mins) 7
Output power (VA) 1000
Output power (Watts) 900
Input Voltage (Volts) 220/230/240
Output Voltage (Volts) 220/230/240
Power Supply Input Frequency (Hz) 50 / 60
Dimensions and weight
Width (mm) 438
Depth (mm) 438
Height (mm) 87
Weight (Kg) 16
