Riello Sentinel Dual2 UPS (1-3kVA)
SD2 1000
With 32 years of experience, our knowledgeable sales team is here to provide expert advice on UPS systems tailored to your needs. We specialise in professional installation and comprehensive maintenance services for systems 5kVA and above.
Models

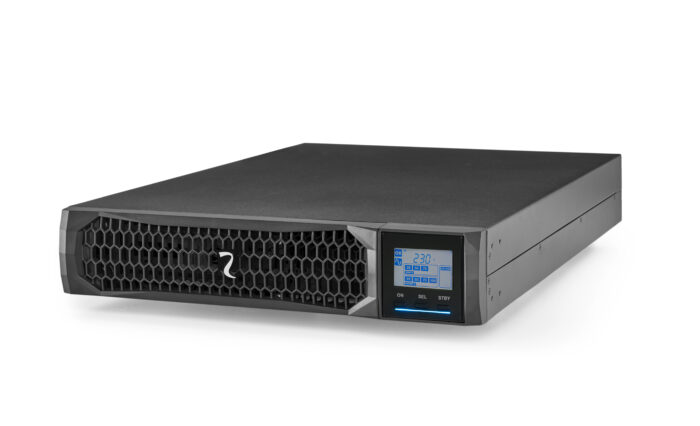

SD2 Rack Right

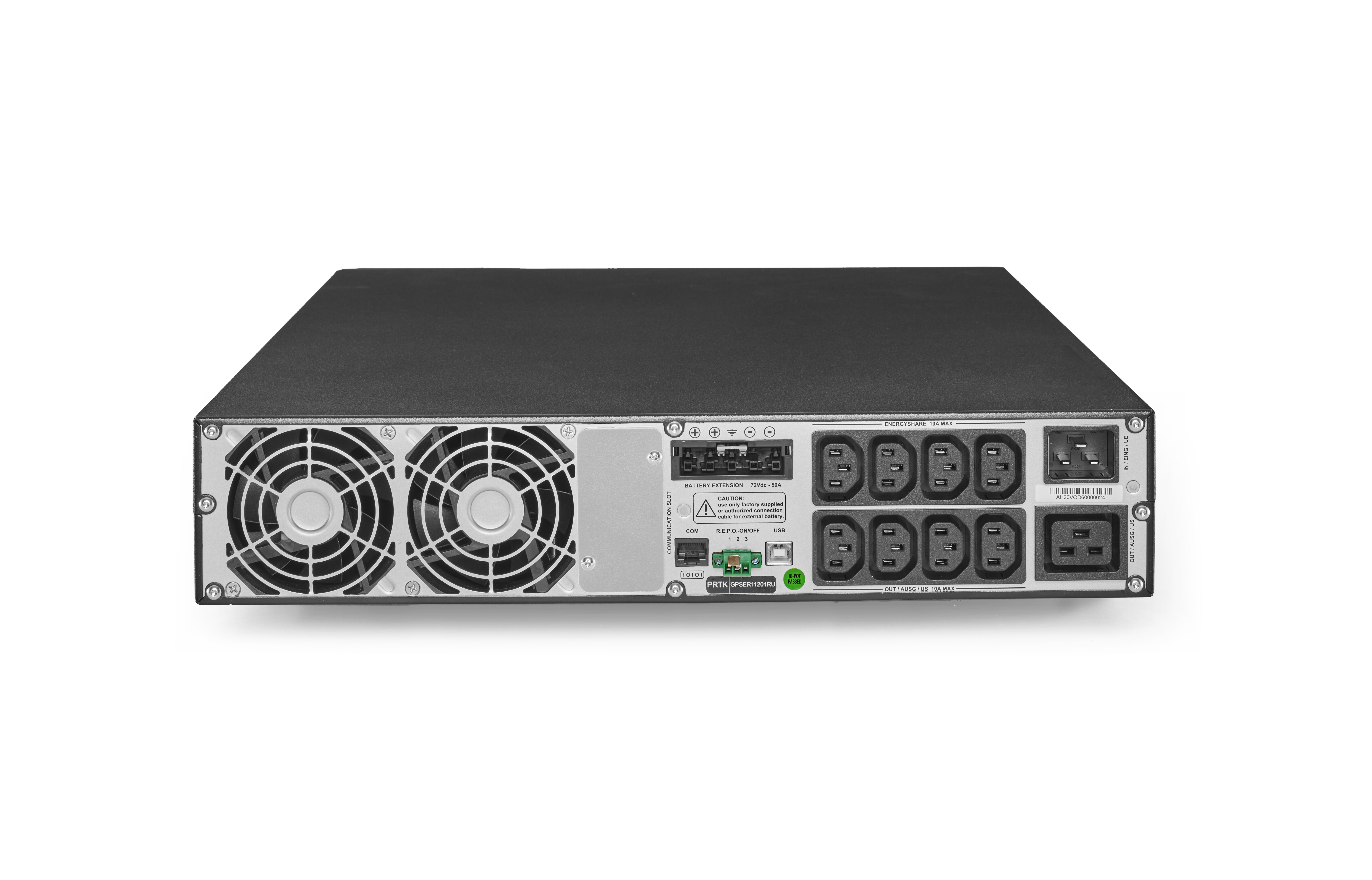

SD2 Rack Rear

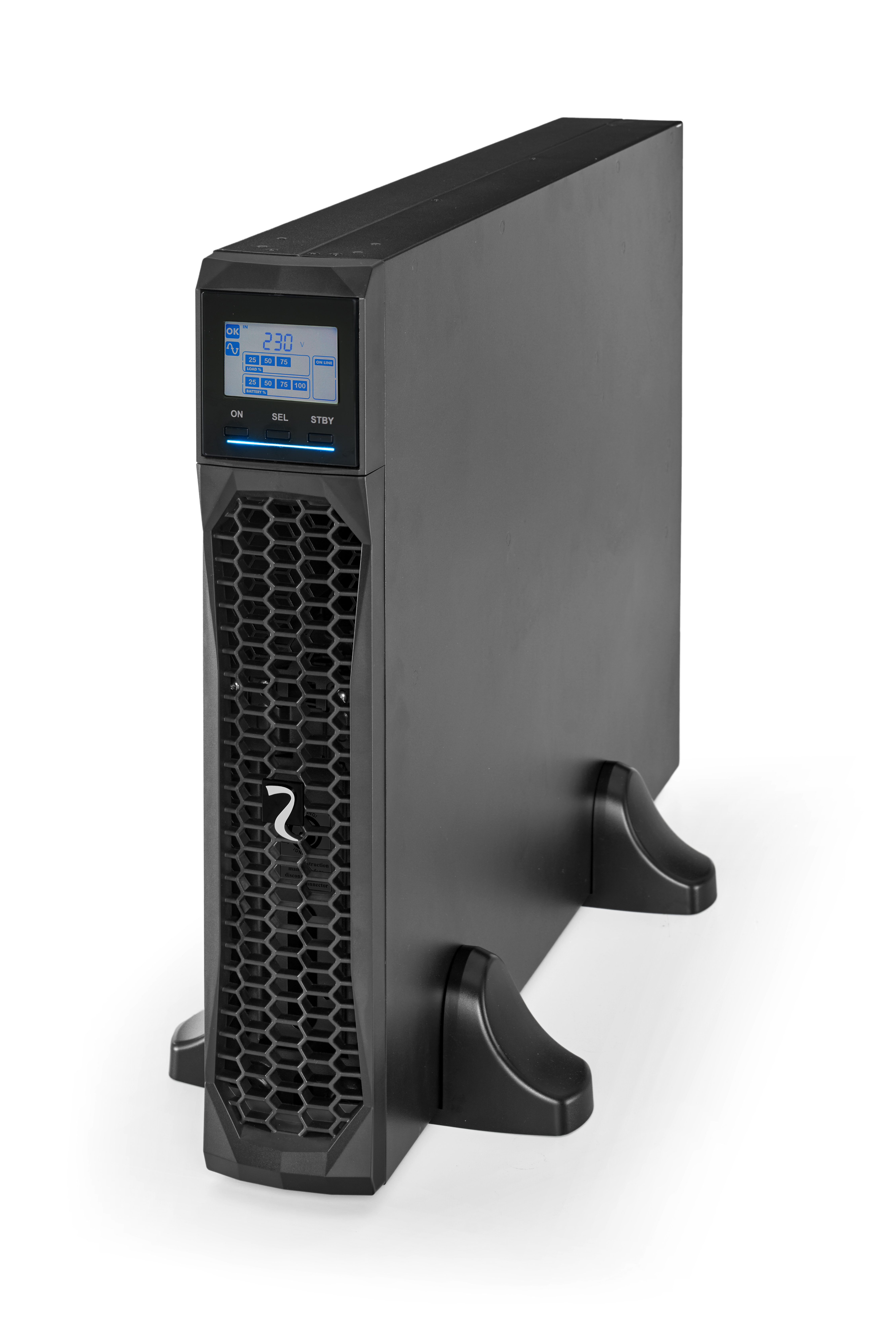

SD2 Right Tower

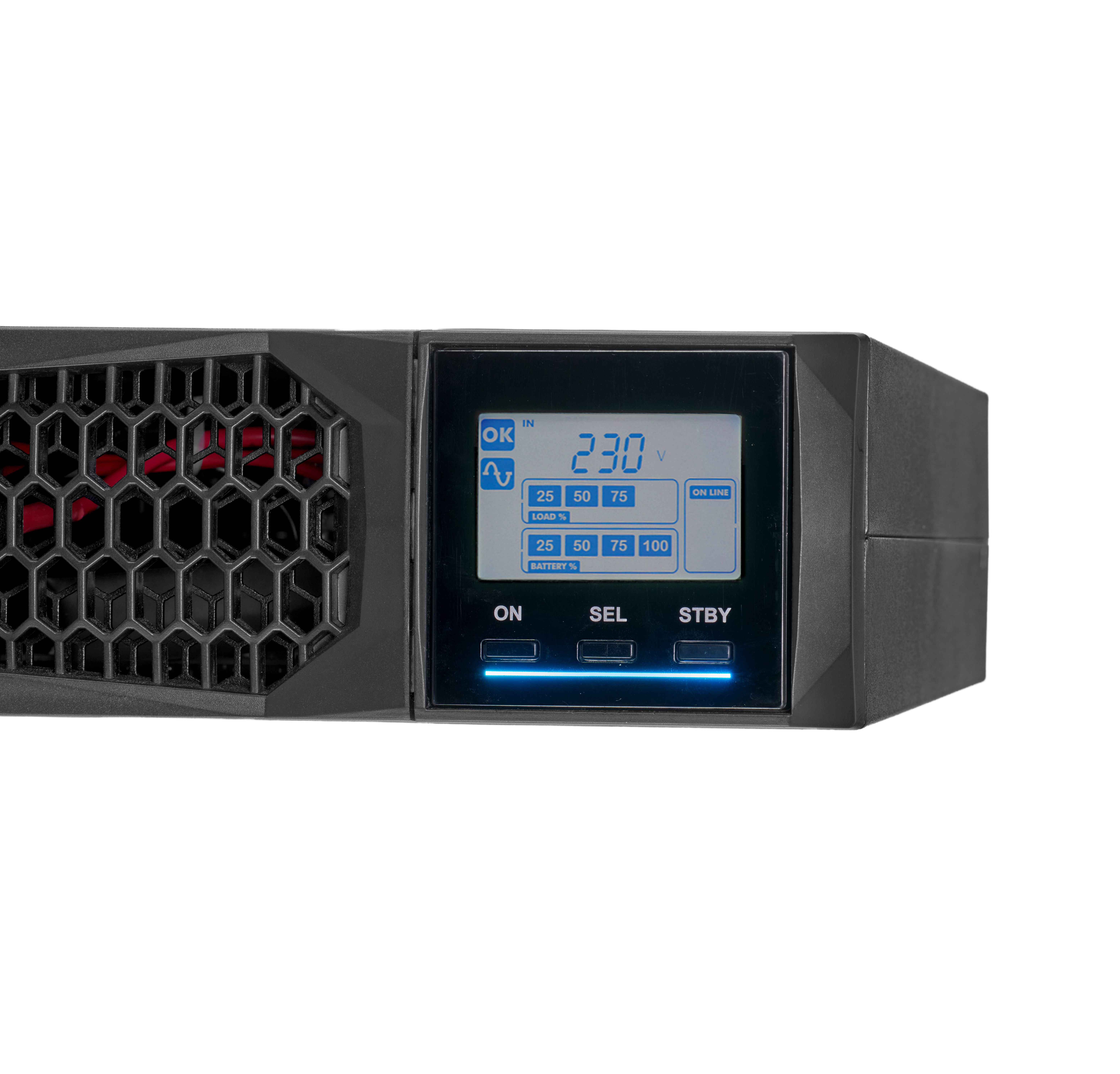

SD2 Display

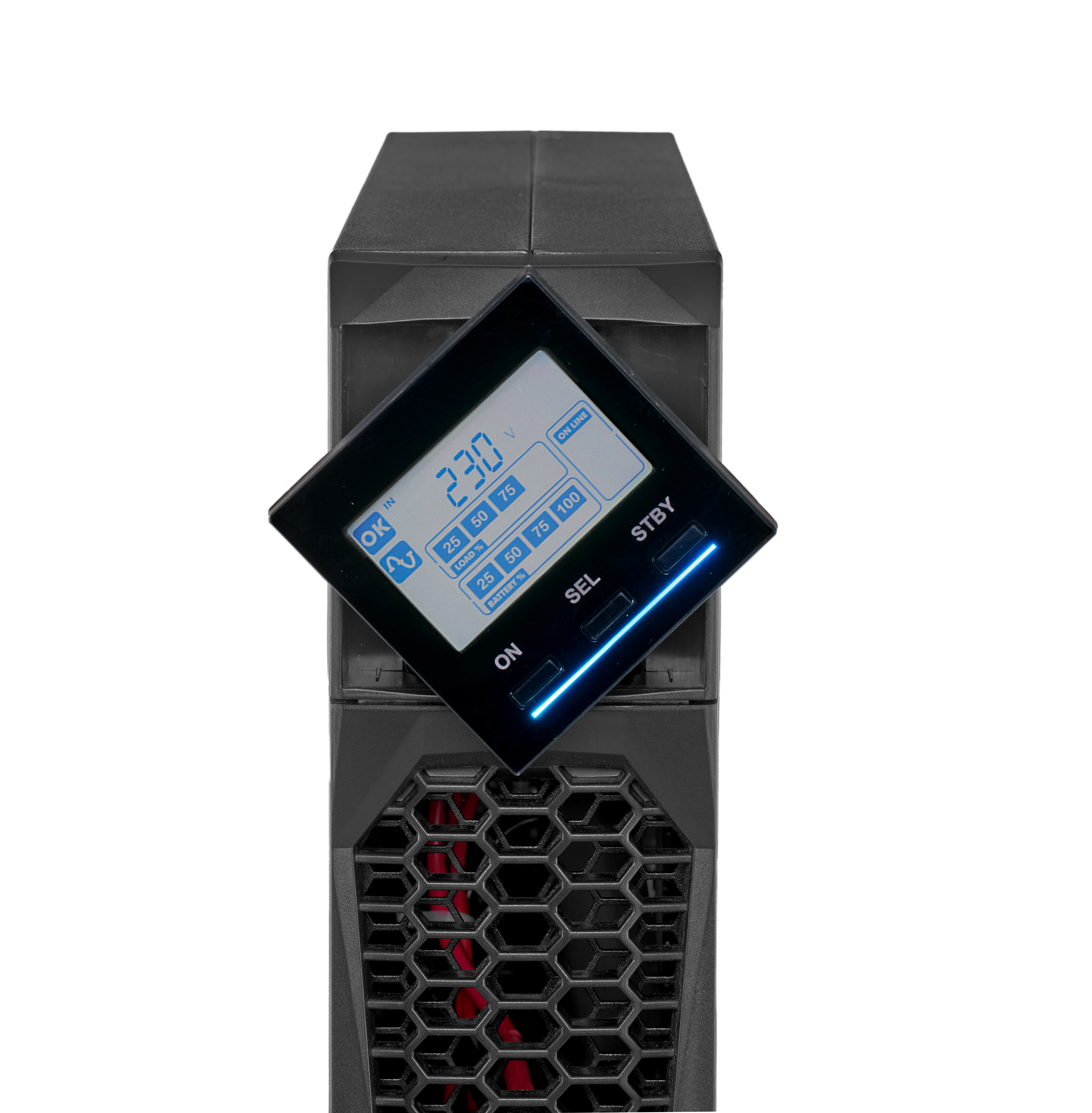

SD2 LCD Rotate
Product Description
The new Sentinel Dual2 (SD2) from Riello is a compact, high-performance, versatile Online UPS designed for critical systems such as blade servers, VoIP equipment, IT networks, electro-medical devices, emergency lighting, and safety systems.
With Unity Power Factor, (where 1kVA=1kW of power), the new Riello SD2 is an Online UPS with double conversion technology ensuring maximum protection and high efficiency (up to 93.7%).
Install the plug and play SD2 as either a 2U rackmount UPS, or a freestanding tower UPS simply by adding the accompanying handles or optional rack supports. The LCD display panel rotates 90 degrees to suit your setup and provides real-time monitoring, while an intuitive Bluetooth mobile app simplifies the system setup and management.
The SD2 2.2 and 3kVA variants are also available as ER models, (SD2 2200 ER and SD2 3000 ER), which do not contain batteries. These are designed to be used with multiple battery boxes to provide increased runtimes.
The SD2 is covered by Riello’s 5 year extended warranty.
Technical Specifications
| Warranty | 5 Years |
| UPS Technology | Online |
| Ports and connections | |
| Input | IEC C14 |
| Output | 8 x IEC C13 |
| Communications | USB / DB9 with RS232 and contacts / Slot for communications interface |
| Power | |
| Output power (VA) | 1000 |
| Output power (Watts) | 1000 |
| Input Voltage (Volts) | 220 / 230 / 240 |
| Output Voltage (Volts) | 220 / 230 / 240 |
| Power Supply Input Frequency (Hz) | 50 / 60 |
| Dimensions and weight | |
| Width (mm) | 87 |
| Depth (mm) | 425 |
| Height (mm) | 45 |
| Weight (Kg) | 15 |
