Eaton G3 In-Line Meter

EILB14
Eaton G3 In-Line Meter
Eaton G3 In-Line Meter

UPS systems rated at 5kVA and above require professional installation to ensure safe operation, correct configuration, and reliable performance. Our experienced team can manage the complete process, from initial assessment and system specification, through to installation, commissioning, and ongoing maintenance

0333 222 4000 Request Callback

Models

Eaton UPS
ePDU-G3-eilb14
ePDU-G3-Screenshot-web-interface

Product Description

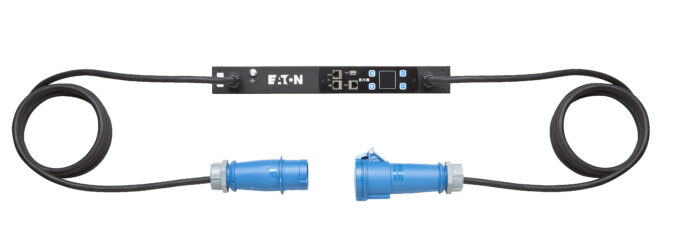

In-Line meters allow existing basic PDUs to be upgraded to include IEC class 1 billing grade metering.

The In-Line meter can be mounted either horizontally in the rack or vertically on the 0U space.

  • Input and Phase Metering.
  • Highly secure with user access control, password protection and SSL configurable to 1024 or 2048 bit.
  • Low-profile form factor: 52mm wide x 53mm deep on most models.
  • 60 Degree C operating temperature.
  • HTTP, HTTPS, SSL, Telnet, FTP, SNMP, SMTP, DNS, DHCP, LDAP, RADIUS.
  • Optional Temp/Humidity sensor.
  • En masse configuration and update available via Intelligent Power Manager software.
  • Single Pane Monitoring of many ePDUs+UPS as part of the power chain, via Intelligent Power Manager.
  • Trigger advanced actions including Vmware SRM and VM migration via Intelligent Power Manager.
  • Installation: Button mounting on rear & side, variable mounting system, horizontal mounting system.
