Riello Sentinel Rack UPS
SER 3000 ER
With 32 years of experience, our knowledgeable sales team is here to provide expert advice on UPS systems tailored to your needs. We specialise in professional installation and comprehensive maintenance services for systems 5kVA and above.

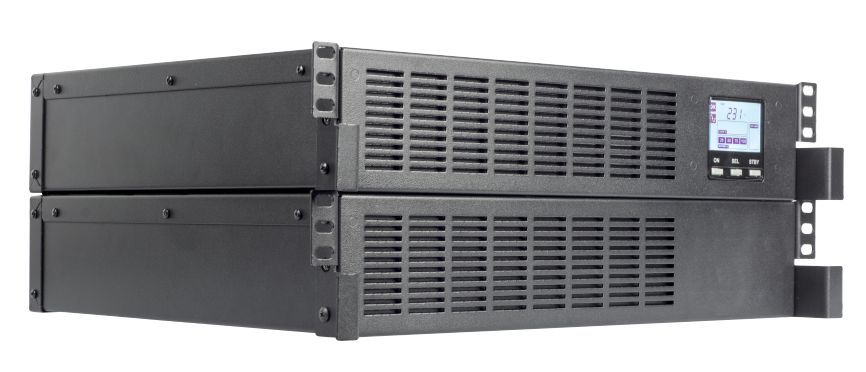

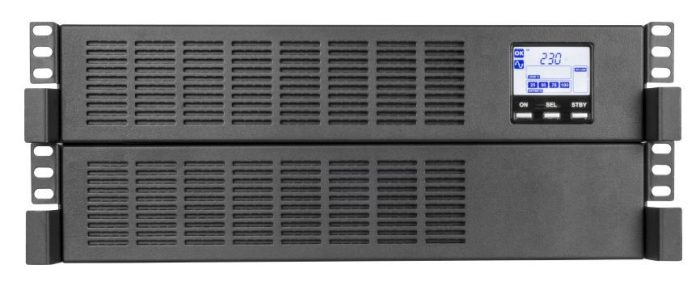

Riello Sentinel Rack UPS with External Battery Pack Front

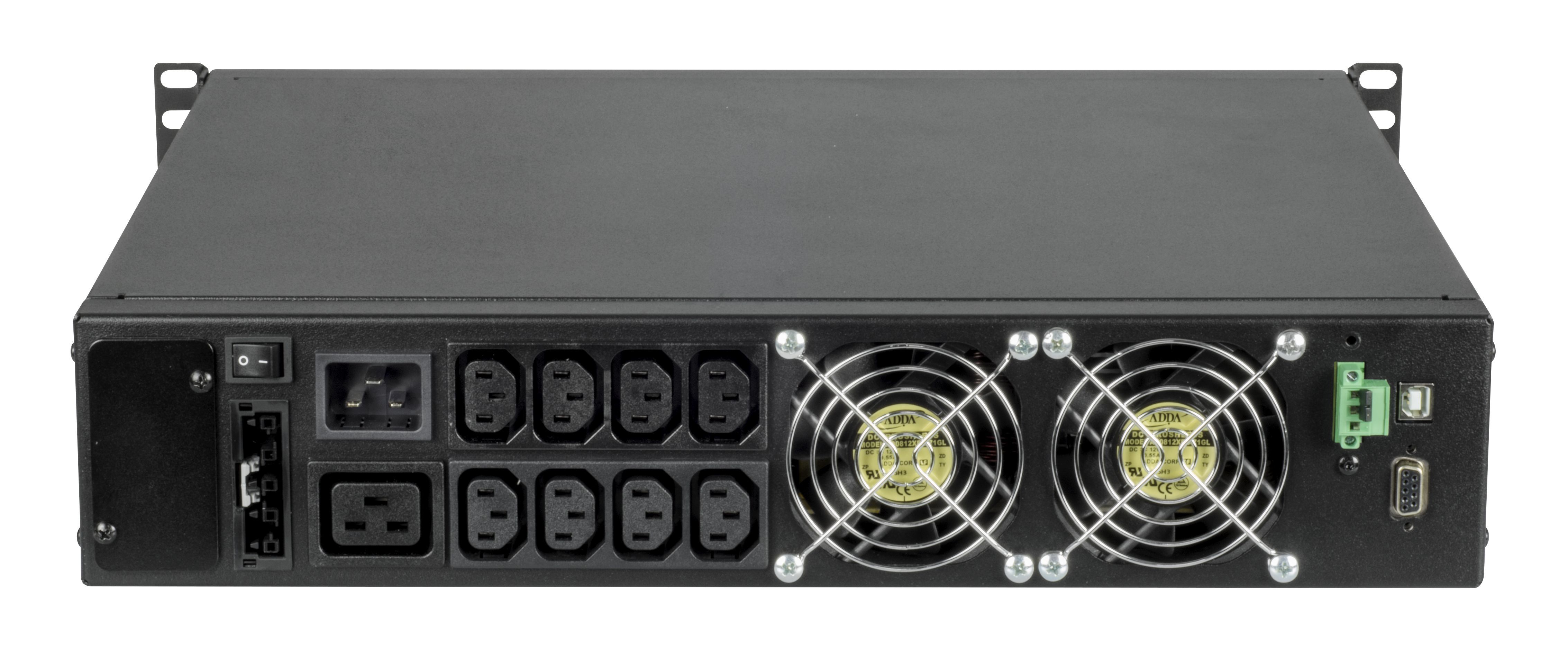

Riello Sentinel Rack UPS SER 3000 ER Rear
Riello Sentinel Rack UPS with External Battery Pack Side
Product Description
The Sentinel Rack is the rack-mounted version of the popular Sentinel Pro range of online UPS. Advanced double conversion technology provides the highest levels of reliability and protection.
Perfect for critical servers, data processing IT systems and telecoms networks. Available in 1500VA and 3000VA versions, both products sit at just 380mm deep, making them the ideal choice to upgrade power in server rooms housing 600mm deep legacy racks.
For applications requiring several hours’ autonomy, the SER 3000 ER is fitted with a 6A battery charger and no internal batteries. At least one external battery pack is required, additional packs will offer increased runtimes. These plug and play UPS systems are designed to fit standard 19 inch cabinet racks and incorporate a Cold Start feature that enables them to power up even if there isn’t a mains supply. Choose from a wide range of operating modes (i.e. Online, Eco, Smart Active, Standby Off, Frequency Converter) to boost performance and improve energy efficiency.
Technical Specifications
| Warranty | 5 Years |
| UPS Technology | Online |
| Ports and connections | |
| Input | IEC C20 |
| Output | 8 x IEC C13, 1 x IEC C19 |
| Communications | USB / DB9 with RS232 and contacts / Slot for communication interface |
| Battery | |
| Typical backup time at 50% load (mins) | No Internal Batteries - Ask our team for Battery Pack Details |
| Typical backup time at 70% load (mins) | No Internal Batteries - Ask our team for Battery Pack Details |
| Power | |
| Output power (VA) | 3000 |
| Output power (Watts) | 2700 |
| Input Voltage (Volts) | 220 / 230 / 240 |
| Output Voltage (Volts) | 220 / 230 / 240 |
| Power Supply Input Frequency (Hz) | 50 / 60 |
| Dimensions and weight | |
| Width (mm) | 438 |
| Depth (mm) | 38 |
| Height (mm) | 87 |
| Weight (Kg) | 18 |
