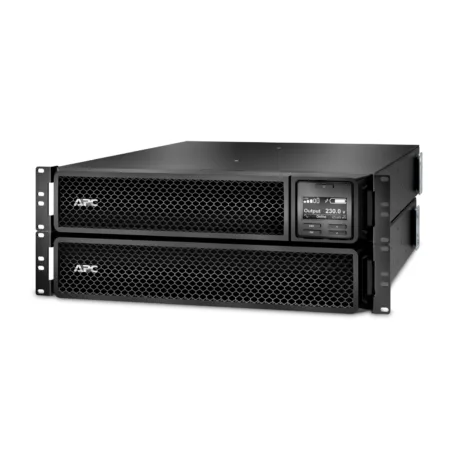

APC Smart-UPS Online SRT series with extended runtime
SRT2200RMXLI-NCHigh density, double-conversion on-line power protection with extended, scaleable runtimes.
Call our sales team for pricing on 0333 222 40005 Options
- APC Smart-UPS Online 1500VA, Rackmount 2U, with network card and rail kit. Extended runtime.
- APC Smart-UPS Online 2200VA, Rackmount 2U, with network card and rail kit. Extended runtime.
- APC Smart-UPS Online 3000VA, Rackmount 2U, with network card and rail kit. Extended runtime.
- APC Smart-UPS On-Line, 5kVA, Rackmount 3U, with network card and rail kit. Extended runtime and 6-year warranty
- APC Smart-UPS On-Line, 6kVA, Rackmount 4U, with network card and rail kit. Extended runtime and 6-year warranty.
Further Information
Product Description
Single-phase, double-conversion online UPS with advanced management features. Perfect for servers, voice/data networks, medical labs, and light industrial applications, the Smart-UPS Online UPS family is capable of supporting loads from 1kVA – 10kVA in a rack/tower convertible chassis. The 6kVA, 8kVA, and 10kVA models feature unity output power factor enabling them to support power-hungry blade servers or heavily loaded equipment racks. When business-critical systems require runtime in hours, not minutes, Smart-UPS On-Line can be configured with multiple battery packs to meet aggressive runtime demands.
Technical Specification
Warranty | 3 Years |
UPS Technology | Online |

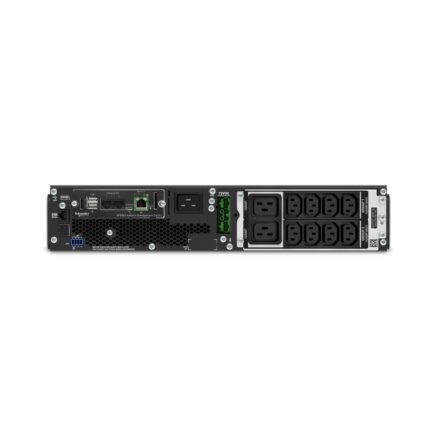

Ports and connections | |
Input | IEC C20 |
Output | 8 x IEC C13, 2 x IEC C19 |
Communications | RJ-45 Serial, SmartSlot, USB |
Battery | |
Typical backup time at 50% load (mins) | 11 |
Typical backup time at 70% load (mins) | 7 |
Power | |
Output power (VA) | 2200 |
Output power (Watts) | 1980 |
Input Voltage (Volts) | 220/230/240 |
Output Voltage (Volts) | 220/230/240 |
Power Supply Input Frequency (Hz) | 50/60 |
Dimensions and weight | |
Width (mm) | 432 |
Depth (mm) | 584 |
Height (mm) | 85 |
Weight (Kg) | 25 |
