APC Smart-UPS Online SRT series with extended runtime
SRT5KRMXLI-6W
This UPS system requires professional hard‑ wired installation , to request a free of charge site survey please contact our sales team.
Models
- APC Smart-UPS Online 1500VA, Rackmount 2U, with network card and rail kit. Extended runtime.
- APC Smart-UPS Online 2200VA, Rackmount 2U, with network card and rail kit. Extended runtime.
- APC Smart-UPS Online 3000VA, Rackmount 2U, with network card and rail kit. Extended runtime.
- APC Smart-UPS On-Line, 5kVA, Rackmount 3U, with network card and rail kit. Extended runtime and 6-year warranty
- APC Smart-UPS On-Line, 6kVA, Rackmount 4U, with network card and rail kit. Extended runtime and 6-year warranty.

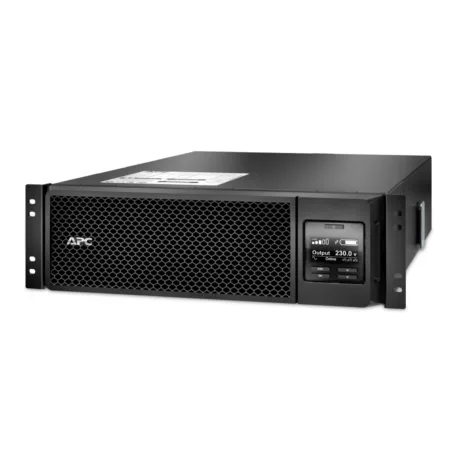

SRT5 KRMXLI 6 W

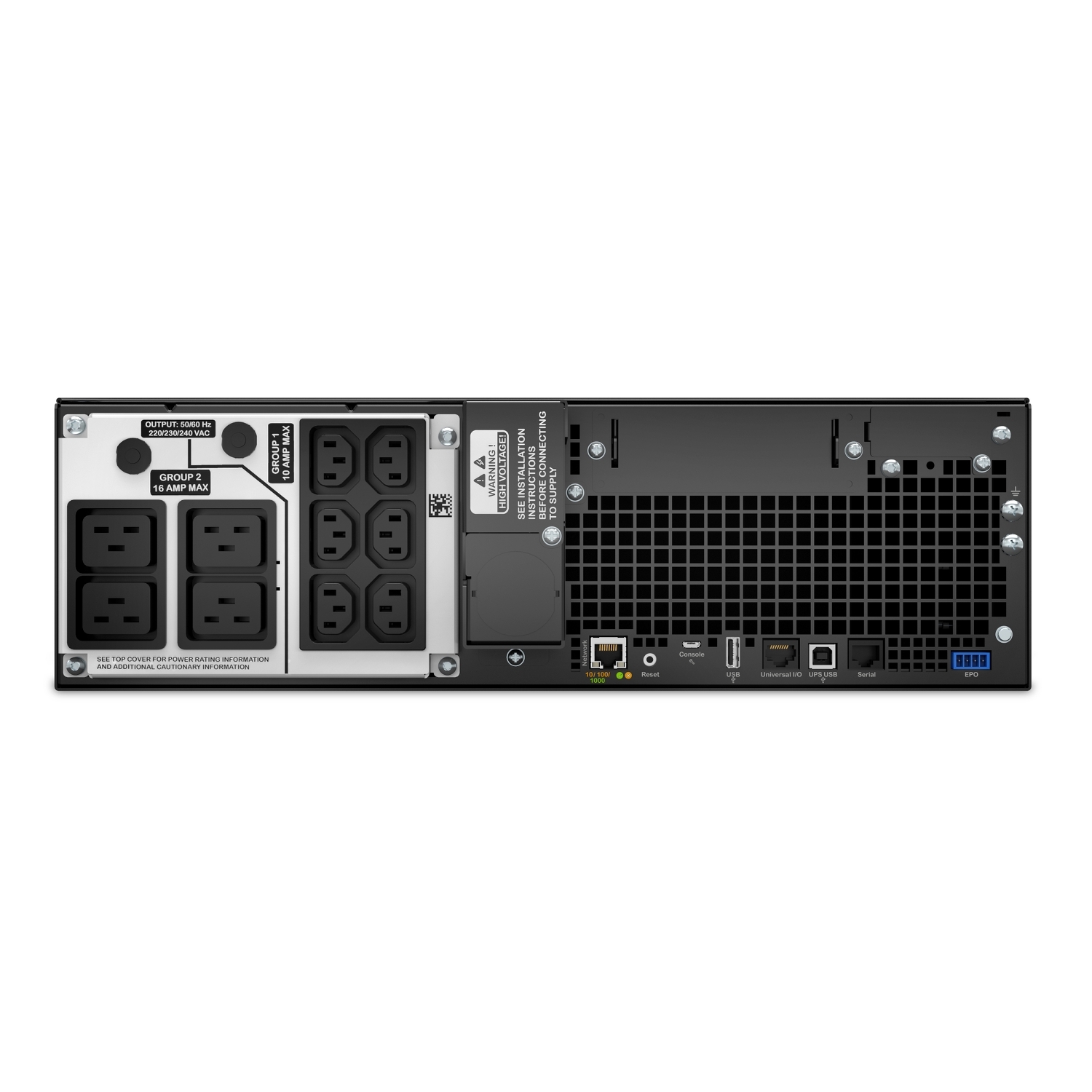

SRT5 KRMXLI 6 W Rear

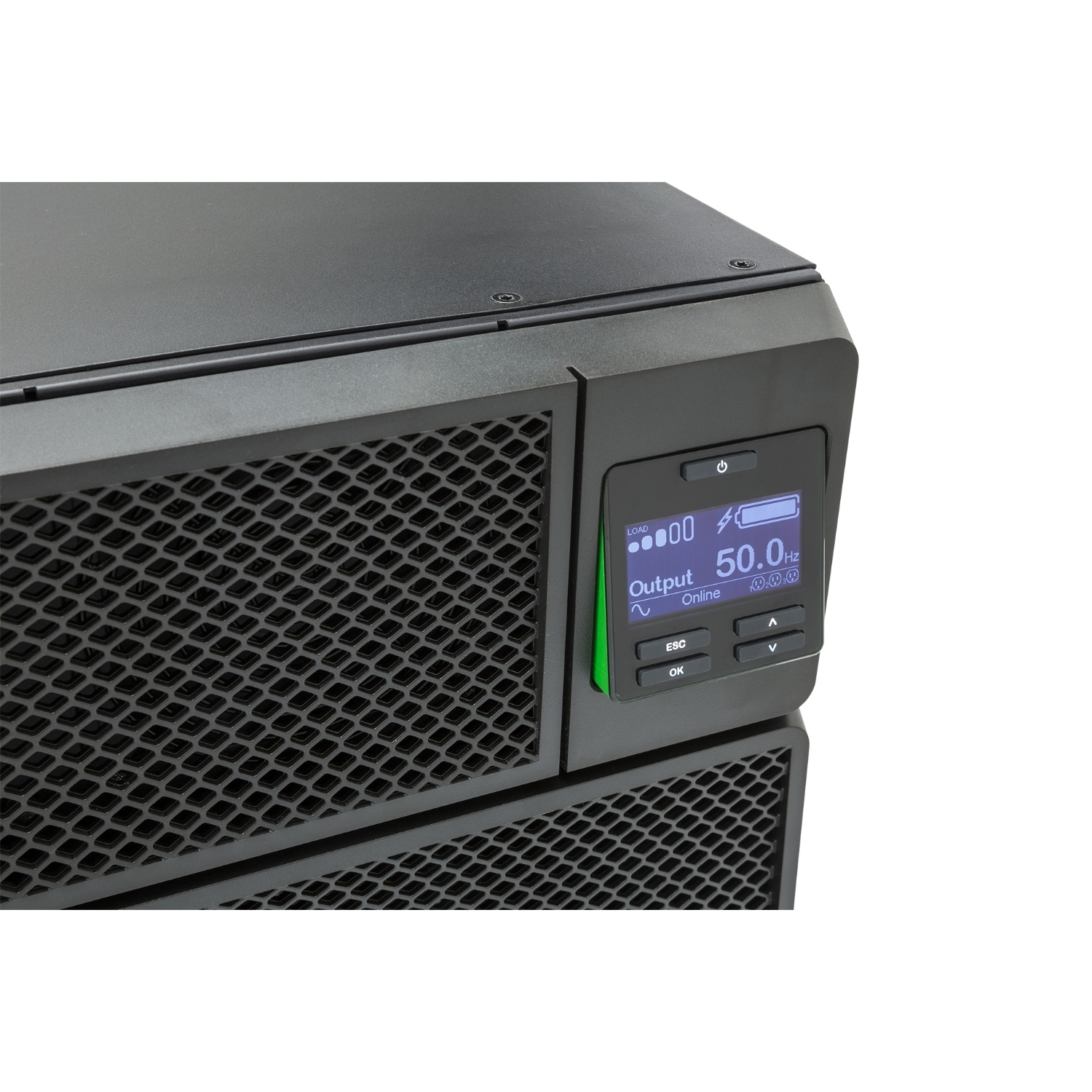

SRT5 KRMXLI 6 W LCD
Product Description
High density, double-conversion on-line power protection with extended, scaleable runtimes.
Single-phase, double-conversion online UPS with advanced management features. Perfect for servers, voice/data networks, medical labs, and light industrial applications, the Smart-UPS Online UPS family is capable of supporting loads from 1kVA – 10kVA in a rack/tower convertible chassis. The 6kVA, 8kVA, and 10kVA models feature unity output power factor enabling them to support power-hungry blade servers or heavily loaded equipment racks. When business-critical systems require runtime in hours, not minutes, Smart-UPS On-Line can be configured with multiple battery packs to meet aggressive runtime demands.
Technical Specifications
| Warranty | 6 Years |
| UPS Technology | Online |
| Ports and connections | |
| Input | Terminal Block - Hardwired |
| Output | 6 x IEC C13, 4 x IEC C19 |
| Communications | RJ-45 Serial, SmartSlot, USB |
| Battery | |
| Typical backup time at 50% load (mins) | 11 |
| Typical backup time at 70% load (mins) | 7 |
| Power | |
| Output power (VA) | 5000 |
| Output power (Watts) | 4500 |
| Input Voltage (Volts) | 220/230/240 |
| Output Voltage (Volts) | 220/230/240 |
| Power Supply Input Frequency (Hz) | 50/60 |
| Dimensions and weight | |
| Width (mm) | 432 |
| Depth (mm) | 719 |
| Height (mm) | 130 |
| Weight (Kg) | 54 |
